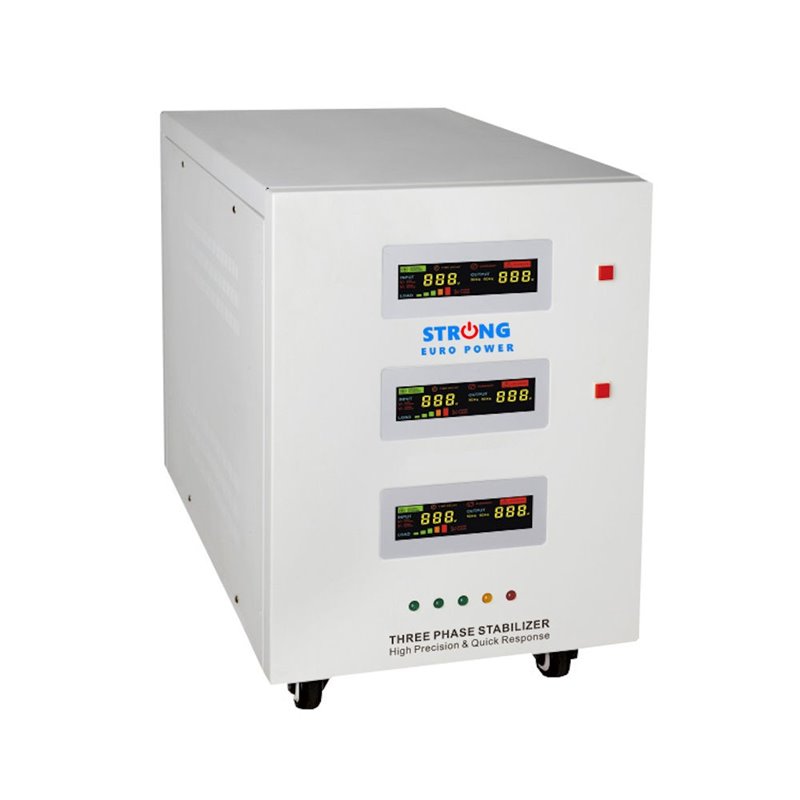

Stabilizator tensiune cu servomotor Strong 15KVA 173V-450V trifazic

Stabilizator trifazic cu servomotor Strong Euro Power 15KVA 173V-450V

Caracteristici generale:

-        Transformator toroidal C.R.G.O.

-        Servomotor AVR de inalta precizie ±3%

-        Regulator separat pentru fiecare faza 220V; pentru trei faze 380V

-        Mod monofazat / mod trifazat optional, stabilizatorul functioneaza chiar daca o faza este afectata

-        Control CPU de inalta perfomanta si viteza

-        Afisaj LED

Specificatii tehnice:

Input Voltage Range: 173V-450V

Rated Capacity: 15.000VA

Phase: Three phase

Transformer: C.R.G.O. toroidal transformer

Indicator: LED graphic

Display Status: working and loading

Output:

Frequenc: 50/60 Hz

Voltage: 380/400 Vac optional

Precision: ± 1%-3%

Protection: overload / high temperature / high voltage / low voltage / short circuit

Delay Function: delay / un-delay (180/6 seconds selectable)

Efficiency: 0.98

Cooling System: Smart cooling for 3000Va and above

Environmental:

Operating Temperature: 0 - 40 ℃

Relative Humidity: 10%~102% RH, non-condensing

Storage Temperature:﹣15 - 45 ℃

Appearance:

Dimension: 545*230*347

Weight: 43 kg
